Camera đo nhiệt độ PCE-TC 3VG

High resolution and comes with software

At the core of this thermal imaging camera is an uncooled focal plane array with a resolution of 160 x 120 pixels. The PCE-TC 3 thermal imaging camera is ergonomical and easy to use wth only one hand. Thanks to its light weight of only 750g, it's ideal for the analysis of machines and systems, for thermographics in construction and many other applications. The PCE-TC 3 thermal imaging camera offers a measurement accuracy of ±2ºC or ±2% within a temperature range of -10ºC to 250ºC, and wth a sensitivity of only 0.15ºC. Two moveable points can be manipulated in situ on the camera's colour display and show the corresponding temperature. This device also allows the user to automatically see the Hot-Spot and Cold Spot, and can measure the difference in temperature. With these top-of-the-range functions, irregularities can immediately be spotted and pertinant measures can be taken in situ. The integrated laser pointer allows for the device to be accurately aimed to ensure that the correct area is being measured.
Images that are saved to the camera's SD memory card can be transferred to a computer via the USB port or to take measurements while the camera is connected to a computer. Software comes included and it does more than just allow for analysis of thermal images, it permits the user to generate reports without extensive knowledge of or experience using the device.

• Accurate measurement of temperature on the display

• Two moveable measurement points

• Automatically locates hot point, cold point and point of average value

• Large 3.5" LCD with back lighting

• High resolutio of 160 x 120 pixels

• Temperature range: -10 to 250°C

• Accuracy: maximum ±2°C or ±2%

• Uncooled focal plane array for maintenance free work

• Perfectly balanced, preventing wrist fatigue when used over extended periods.

• Ergonomic: Use it with one hand

• Light weight: 750g

• Laser pointer: Can be aimed exactly at the area to be measured

• Memory card for up to 1000 images

• Long operating time of up to 6 hours

• Data transfer of data: via the USB port to a computer

• Software: to analyse data and easily generate detailed reports

• Wide range of accessories

View or print the user's manual

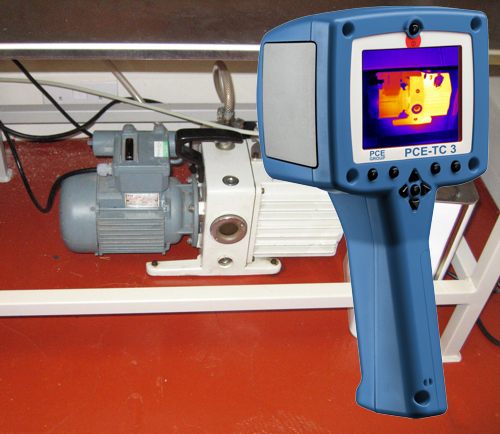

Example of a thermograph of a motor unit and transmission using the PCE-TC 3

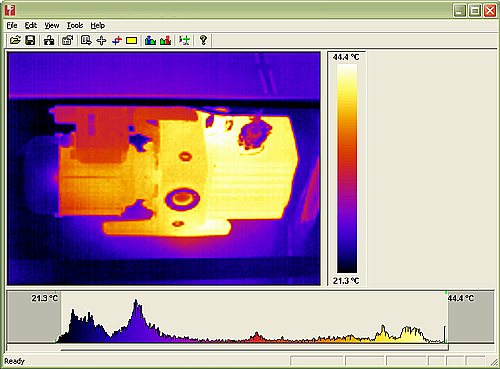

The image shows a thermographic valuation in software on a computer

30cm to infinity

Thermal tracks on pavement

The same image in grey scale

Thermal charge of a wheel

The same image in grey scale

Thermal image of a building front

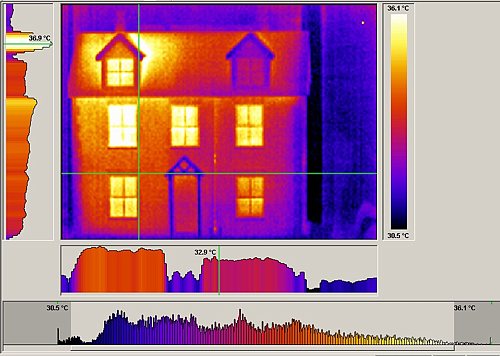

Valuation of an image using software

Another presentation of colour
of a building facade

high thermal radiation from a window

Thermal radiation from a building

Thermal leaks from a window

The images captured are sent from the SD memory card to a computer. Software allows access to all the pixels in the image and the opportunity to adjust the parameters such as emission value, temperature, humidity and distance.

Features
 • Determines temperature at all points
 • Determines minimum, maximum and average temperature
 • Selection of colours available
 • Possibility to change Level and Span
 • Automatically compiles models and reports
 • Results table with automatic indication of date, time, user and event
